Emaux pH chemical dosing system CTRL4‐PH

Emaux automatic pH monitoring and dosing system. CTRL4‐PH.

Flow rate up to 4 l/hr.

Solenoid driven pump (no squeeze tubes).

Guarantee: 1 year (probe: 6 months.

TEMPORARILY OUT OF STOCK. New stock 15 June

EN RUPTURE DE STOCK TEMPORAIRE.

MOMENTAN NICHT AUF LAGER.

สินค้าหมด.

TILLFÄLLIGT SLUT I LAGER.

More details

More info

The installation and configuration instructions are only available in English. Except within a 100 km radius of our location, we cannot help you install this product.

Complete kit

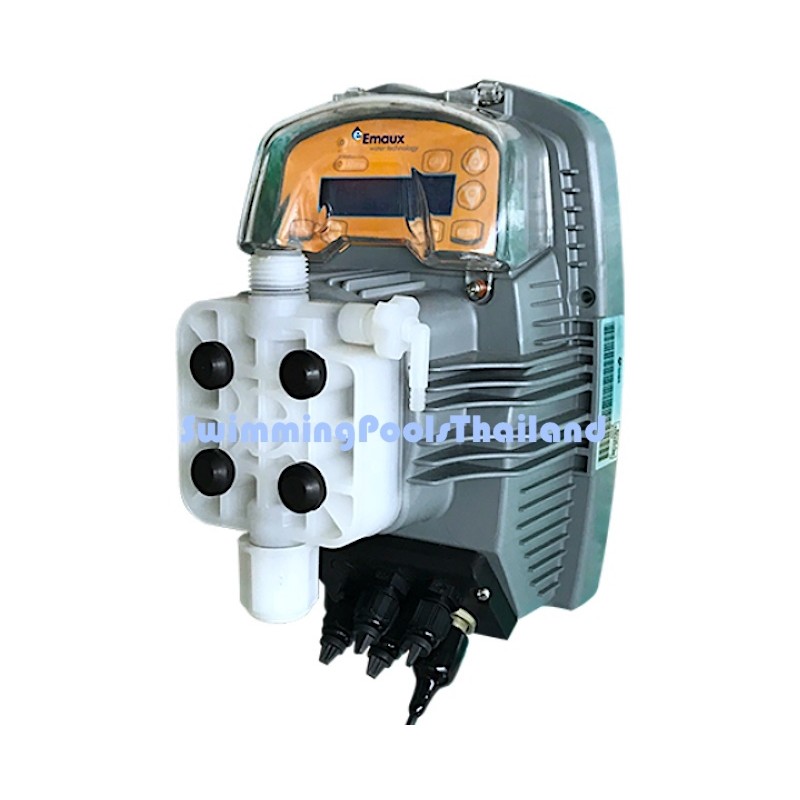

Pump: CTRL4-PH Flow rate up to 4L/hr.

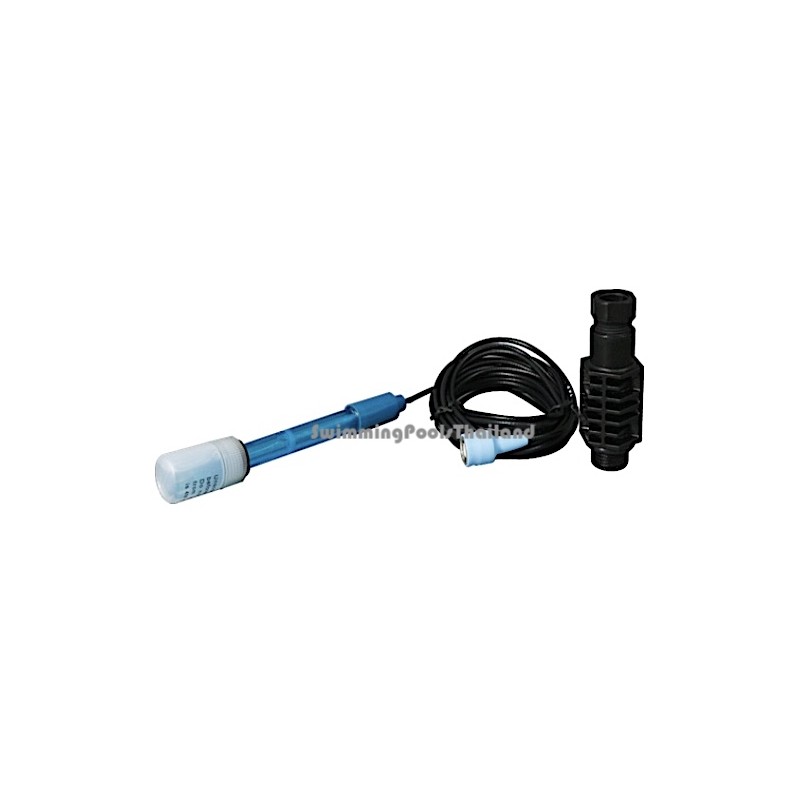

pH probe

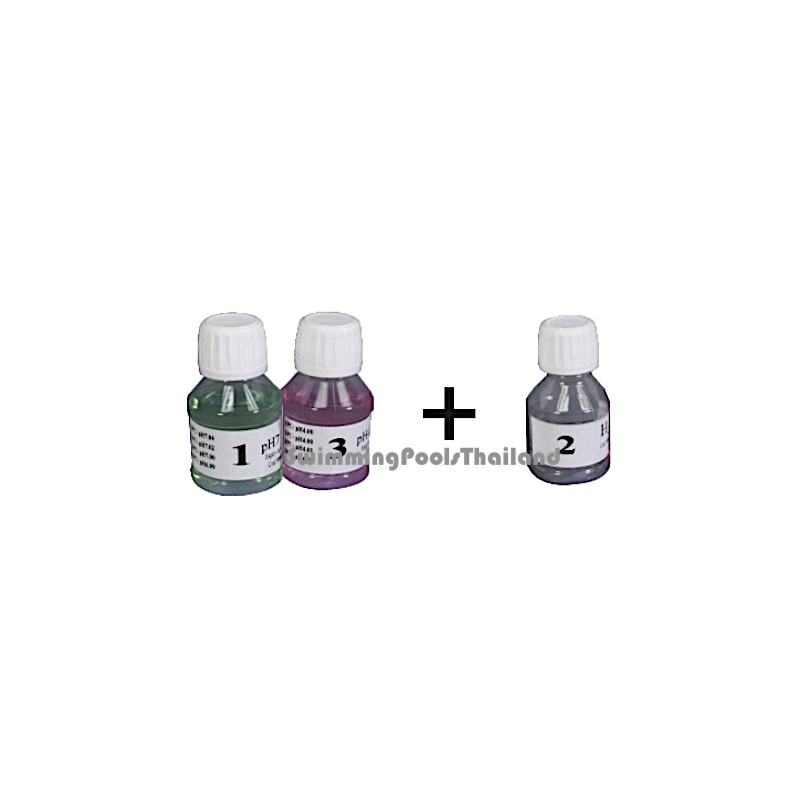

Buffer solutions (3) for pH probe calibration

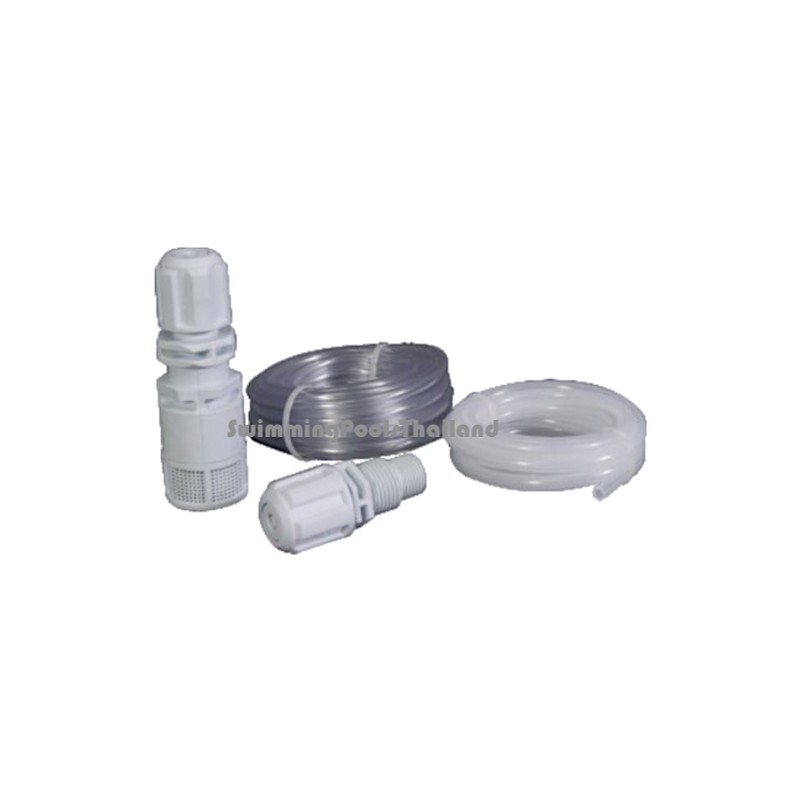

Pipes and pipe fitting kit

Guarantee: Pump: 1 years. Probe: 6 months

Compact, easy for pool professionals to install and operate. Digital electromagnetic membrane pump. Easy operation without lubrication, is almost maintenance free. Adjustable manual control with proportional dosing flow rate, for accurate PH management.

The automatic monitoring system measures the PH value of water through the relative voltage of probes and releases hydrochloric acid into the water as required. Total control & dosing through the desired setpoint.

*Unlike traditional peristaltic pH regulating pumps, the dosing pumps is activated by a PTFE membrane mounted on a piston and electromagnet. When the piston on the electromagnet is attracted, a pressure is produced in the pump body with an expulsion of liquid from discharge valve. Once the electric impulse is finished a spring bring the piston back to the initial position, with a recall of liquid through the suction valve. LED indicators control panel to monitor the dosing pump, with electronic micro‐control technology. Easy operation without lubrication requested, is almost maintenance free. No squeeze tubes to replace!

With a compact structure, nice design,professional recognition, easy to install and operate. Digital Metering pump with pH/Redox control meter on board. Adjustbale manual control with proportional dosing flow rate, for the right PH & Redox management.

Main Features:

Significant number of metering pumps, 16-word dual-line LCD screen, full working status display, automatic recording and storage
Built-in PH monitor, or dosing only
Automatically pump flow control is determined in accordance with Monitor PH/ORP value
PH, flow and other automatic/ manual calibration
With level gauge input interface, low level alarm
Flow meter input, telematics control
Password protection

ATTENTION

Always dilute the acid by around 10 - 20% before using in pH pumps.

ATTENTION

Diluer toujours l'acide d'environ 10 - 20% avant de l'utiliser dans des pompes à pH.

VORSICHT

Verdünnen Sie die Säure immer um etwa 10 - 20%, bevor Sie sie in pH-Pumpen verwenden.

ความสนใจ

เจือจางกรดเสมอประมาณ 10 - 20% ก่อนใช้ในปั๊ม pH

UPPMÄRKSAMHET

Späd alltid syran med cirka 10 - 20% innan den används i pH -pumpar.
