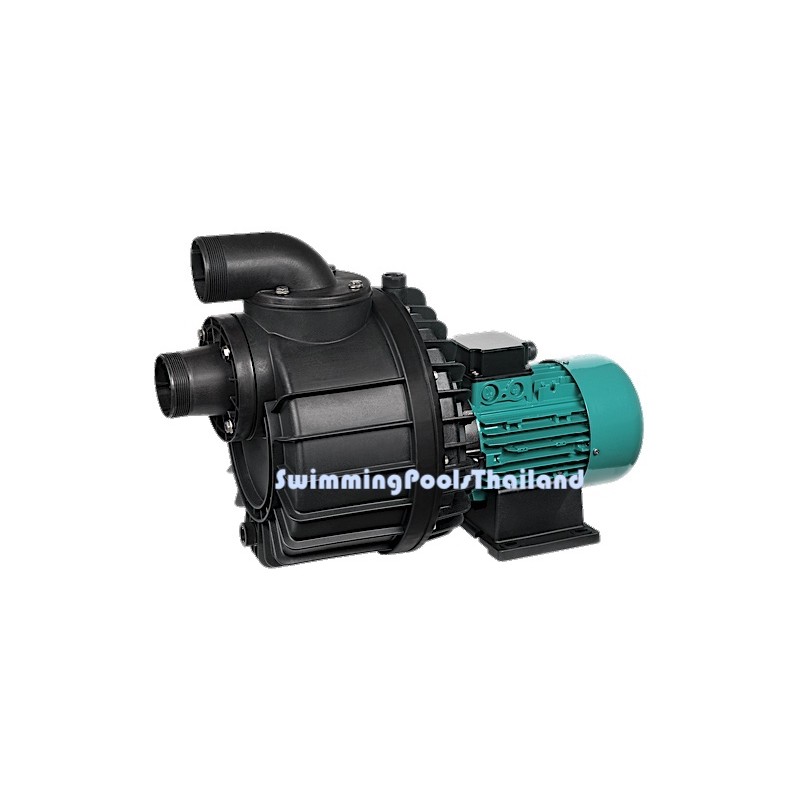

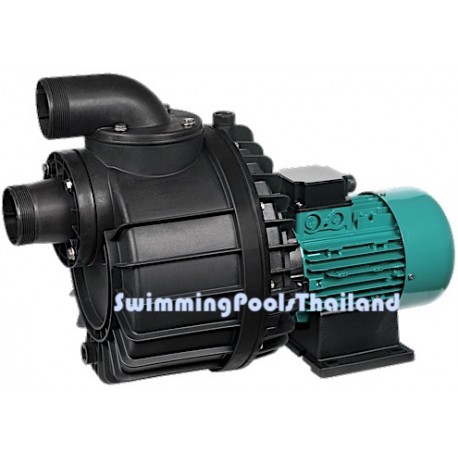

ESPA Nadorself 200 2HP spa pump 380V Flow rate 29 m3/hr. 2.5" ports. Extremely quiet running, high quality spa and swimjet pump.
Guarantee 2 years. Made in Spain.
In stock. Delivery approx. 2 - 6 business days (weight: 26 Kg)
Features
Applications
Single-impeller centrifugal pump specifically designed for jet-stream currents, with flows up to 75 m3/h.
Self-priming up to 4 metres. With 2 drainage spouts on the hydraulic casing. Adjustable impulsion.
Materials
Pump casing, pump base, diffuser, impeller and seal mounting in technopolymer.
AISI 420 stainless-steel drive shaft.
Mechanical seal in graphite and alumine, L-2521 alumine motor casing and windings mechanism impregnated with epoxy resin. NBR gaskets.
Motor
Asynchronous, 2 poles.
IP 44 protection.
Class F insulation.
1~: Thermal protection included. Continuous operation.
Limitations
Maximum water temperature: 40° C.
Equipment
Connection box V0 (self-extinguishing flame).
P2 capacitor (10.000h).
Not supplied: cable, plug.
Installation
Required by qualified electrician. Needs over/under phase protector, contactor, RCCB/GFCI
Supplied with suction and impulsion accessories.
