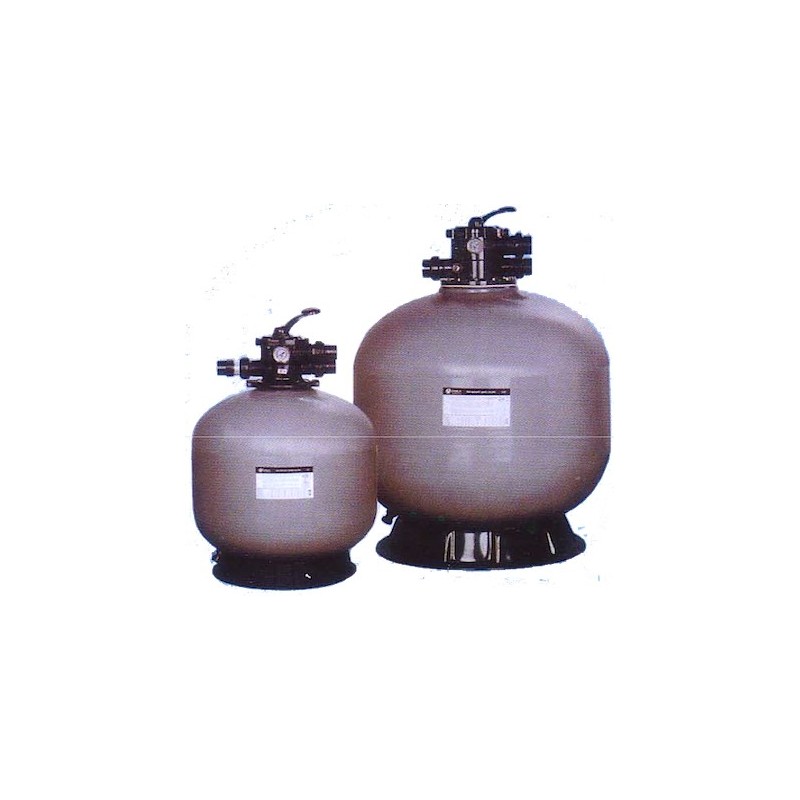

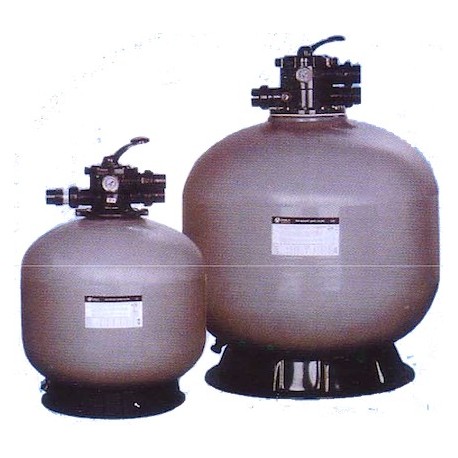

Emaux V1200 48" top mount 2" ports

Emaux 48" top mount sand filter V1200 2" ports. Design flow 51.5 m3/hr.

More details

101136

฿ 55,046.73

This filter is designed for pools of around 300 m3. or situations where a very  high  flow rate is required.

The bobbin wound filter is manufactured by computerized fiberglass filament winding technology. This ensures the mechanical strength of the filter tank and its ability to withstand pressure. The V series and S series are manufactured from durable and non-corrosive fiberglass and resin. The UV resistant composites allow the filter to withstand extreme weather conditions for a long outdoor service life without corrosion.

  • Bobbin-­wound fiberglass reinforced tank
  • UV and weather resistant - can be used outside in direct sunlight
  • six-­position, clamp style multiport valve and ABS laterals.
  • Stainless steel oil-damped pressure guage
  • Clear-view backwash optic
  • Ideal for domestic in-ground and above-ground pools and hot spas
  • Maximum operating pressure 2.5 bar (36 psi)
  • Can also be used with Zellbrite or EcoClear which need only 75% of weight of sand)
  • 2-year limited warranty

Performance

V series tech data

Dimensions

V Series dimensions

For more technical details please download the brochures

Available parts: All -  please let us know what you need
