Home > PUMPS>Speck Badu Gamma 32 2HP domestic pump

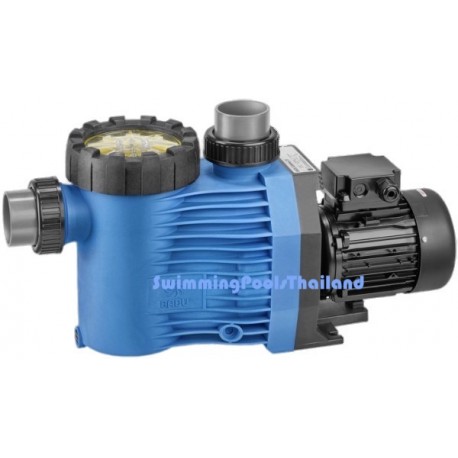

Speck Badu Gamma 32 2HP domestic pump

Speck Badu Gamma 32 2HP domestic pump. Flow rate: 27 - 32m3 per hour. For pools 162 - 216 m3

Ports 2" in, 1.5" out.

Delivery approx. 4 - 7 days.

More details

204308

฿ 45,785.05

Made in  Germany. Very quiet, self priming for swimming pool filter installations.

For pools 162 - 216 m3

Can be located 3m above or 3m below the water line.

The BADU® Gamma's areas of expertise are private and smaller commercial  pools.Traditionally these applications are usually served by  expensive,  heavy-duty cast-iron pumps, but the BADU® Resort is a pump with a deeper purpose in mind. Thanks to its state-of-the-art fibre reinforced plastic, investment  osts are dramatically reduced without affecting its prolonged life and superior performance

Product information "BADU® Gamma 32"

With the BADU Gamma swimming pool pump you have the usual first-class material quality.It is extremely quiet and has improved hydraulics with optimised water flow. Optional inner or outer threads provide great felxibility during installation.

Field of application

Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.

Design

Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.

Pool equipment: Circulation pump

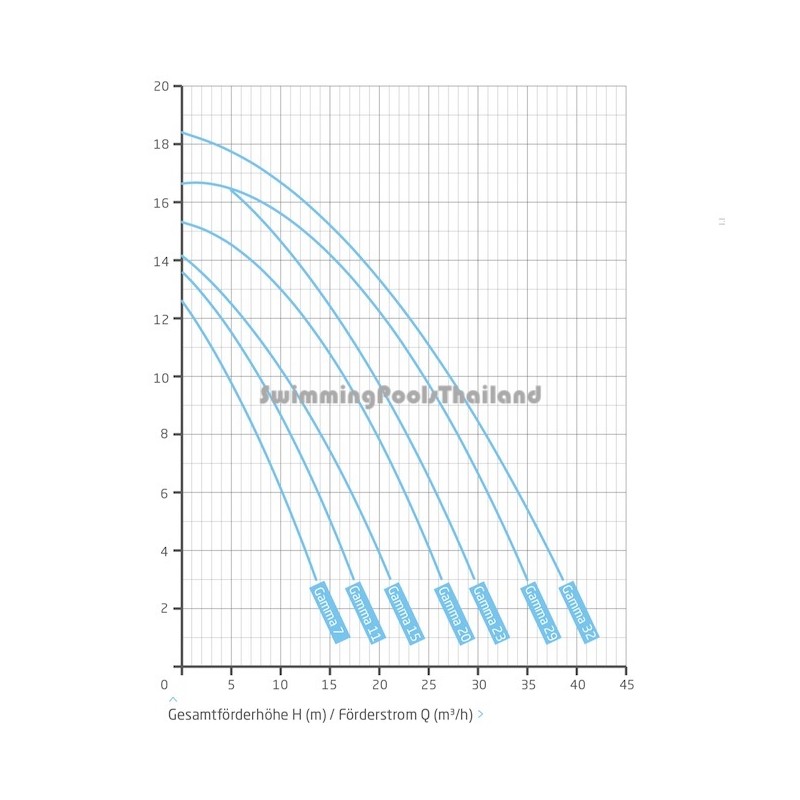

Flow rate Q in m³/h: 32
Total head H in m WS: 8
Motor performance in kW (P2): 1.50
Strainer capacity in l: approx. 3
Strainer basket mesh size in mm: approx. 3.2 x 2.6
Pool type: Outdoor pool, Natural pool/swimming pond, Indoor pool
Installation: Built-in pool, Above ground pool
Class: PREMIUM
Pump casing: PP GF 30
Diffuser: PA 66 GF 30/PP GF 30
Impeller: PP GF 30
Strainer basket: PP
Mechanical seal: carbon / ceramic / NBR
Screws: stainless steel 1.4301
Intermediate housing: PP TV 40
Gland housing: PP TV 40
Lid: PC, transparent / PA 66 GF 30
