• No salt needed.
• No expensive cell electrode replacements.
• No maintenance.
• Aucun sel nécessaire.
• Aucun remplacement coûteux d'électrode de cellule.
• Aucun entretien.
• Kein Salz erforderlich.
• Kein teurer Zellelektrodenwechsel.
• Keine Wartung.
Guarantee: 2 years (bulb 1 year)
Emaux Nano Tech NT-UV87-TO with Ozone production.
- Flow rate: 25m3 / h.
- For water volume: up to 90m3
- Power: 87W
- Lamp life: 10,000 hours
- Ozone production
- Chlorine saving: up to 99 %
- Guarantee: 2 years
NT-UV87-TO 87W. Flow rate 25m3/hr. For water volume up to 90m3.
- Low maintenance
- Cost-saving
- Ozone lamp life of 10000 hours
- The device indicates when the lamp needs replacing
- Environmentally friendly
- No risk of allergies
- Urine, sun cream, cosmetics and
- sweat are broken down
- by ozone
- Non-irritating to skin
- Corrosion and Odour-free
- Reduce chlorine consumption up to
- 90%.
The Nano Tech series of ultraviolet units are applied in the water treatment sector (residual and drinking water) as well as in swimming pools and ponds installations. Advantages:
- Crystal clear disinfected water
- Protects your pool against pathogenic organism and algae
- 316L stainless steel housing, with mirror polished interior
- Environmental friendly.
Ultra violet light system
Ultraviolet technology is a non‐chemical approach to disinfection, in this method of disinfection, nothing is added which makes this process simple, inexpensive and requires very low maintenance. UV‐C light is become increasingly favored by the pool industry as its ability to break down and remove chloramines, which will cause eye, skin and nose irritation, and breathing difficulties
The Nano Tech series of ultraviolet are applied in the water treatment sector (residual and drinking water) as well as in swimming pools and ponds installations. The UV lamp provides a UV dose of 30 mJ/cm2, which is sufficient for disinfection of the water and protection against 99.9% chlorine‐resistant microorganisms.
Medium pressure lamp ultra violet (UV) light systems reduce chloramine concentrations significantly. Recent evidence suggests that UV light systems, besides providing additional disinfection, also inactivates chlorine resistant micro-organisms such as the parasitic protozoans Cryptosporidium parvum and Giardia lamblia.
Ozone
Emaux has developed a special model which combines the ozone and UV-C technology in one unique equipment (see technical specifications for NT-UV87-TO).
Nano-Tech UV-C & Ozone (NT-UV87-TO model) contains a high intensity Ultraviolet lamp different from the other UV models. This special lamp emits two separates wavelengths within the UV spectrum: 254 nm and 185 nm.
While the 254 nm wave deactivates the DNA of bacteria, viruses and other pathogens, the 185 nm wave is responsible for converting the oxygen contained in the quartz sleeve area into ozone.

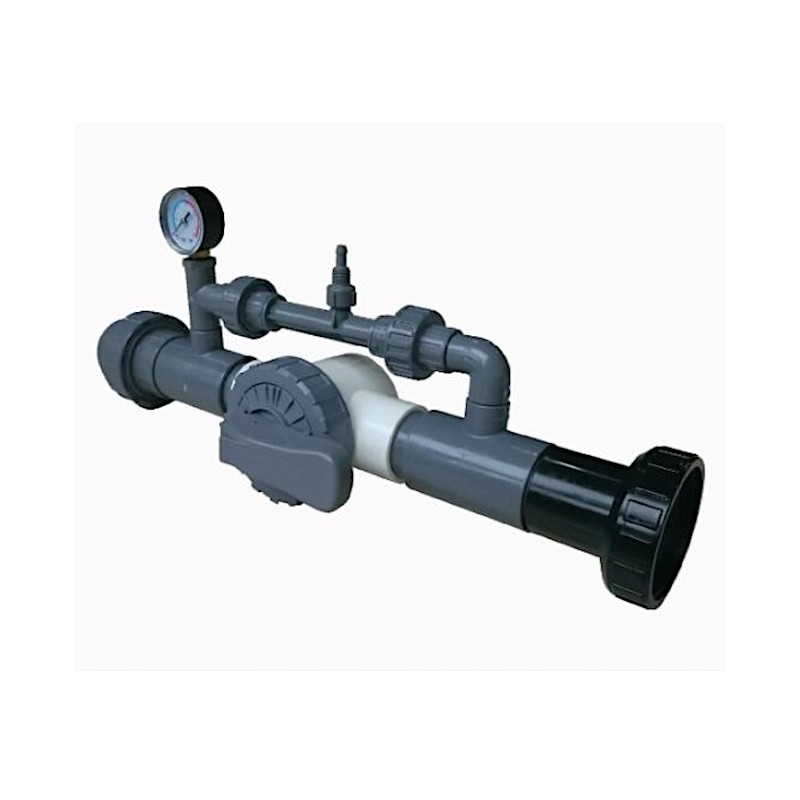

The ozone produced is introduced into the water stream by Venturi effect.
Finally, the ozone and the ultraviolet radiation will work together to destroy micro-organism such as moulds, Legionella bacteria, parasites, algae or viruses, and also breaks down urine, transpiration, cosmetics and sun cream particles without leaving any by-products
Ozone may be used to control chloramines and has good disinfection properties. Low dose ozone (up to 2g/hour) is pumped with air through a venturi into a mixing chamber and reaction vessel in the circulation system after the pool water has been filtered. Provided the ozone is thoroughly mixed and dissolved, it reacts rapidly to destroy chloramines and disinfection by-products to reduce tastes, odours and eye stinging compounds.
– From a fact sheet isssued by the Government of New South Wales, Australia
Guarantee
Should a defect become evident during the term of warranty, Emaux will, at its option, repair or replace such item or part at its own cost and expense. Customer will need to follow the warranty claim procedures from Emaux in order to obtain the benefit on this warranty.
Emaux is not, however, responsible under this warranty for any cost of shipping or transportation of the equipment or parts thereof “to” or “from” our technical operations. Emaux is not liable for any loss of time, inconvenience, incidental expenses such as labour cost, phone calls, legal cost or material cost incurred in connection with the replacement or removal of the equipment, or any other consequential or incidental damage on persons or assets. Emaux will be not responsible for any business profit loss or operation stop due to the non-conformity product equipment. No indemnity or damages can be claimed on any account whatever.
