ESPA Nadorself 3CV spa pompe 380V

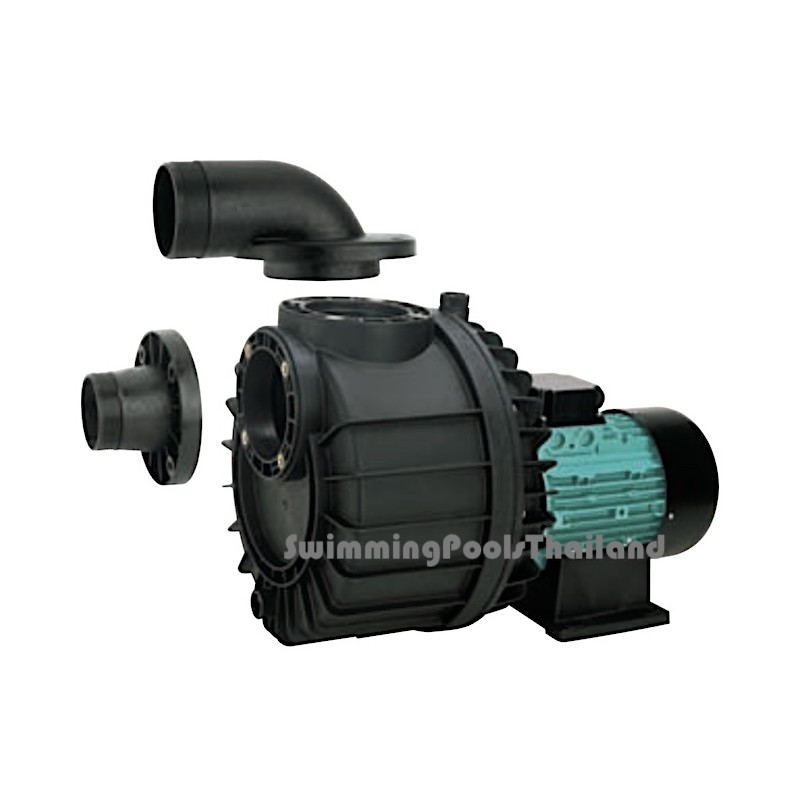

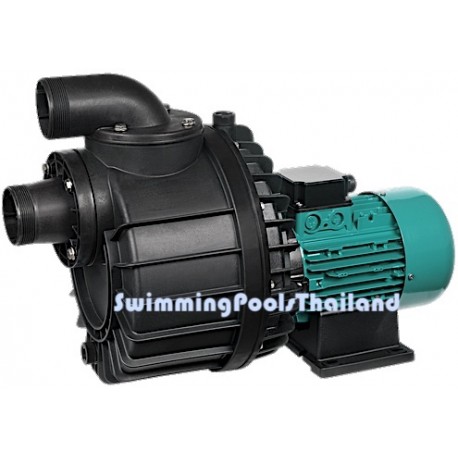

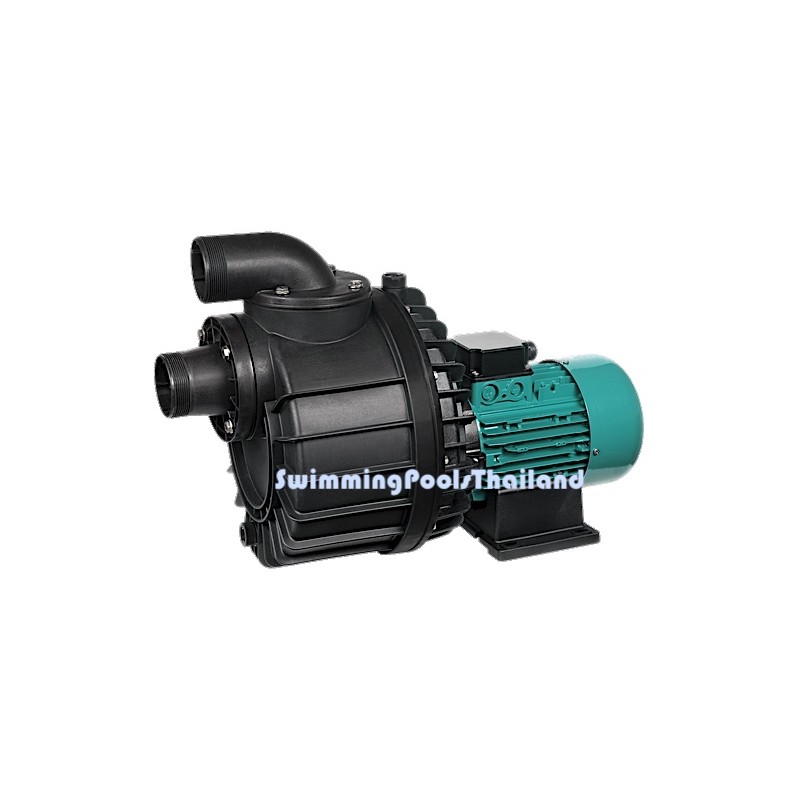

ESPA Nadorself 300, 3CV Pompe Spa/Swim jet,380V triphasé.

Débit 44 m3 / h. Tuyeaux d'aspiration / d'éjection de 2,5 ". Extrêmement silencieux, très haute qualité.

Garantie 2 ans. Fabriqué en Espagne. .

Disponible. Livraison 3 - 6 jours ouvrables.  (poids: 26 kg).


Plus de détails

206506

฿ 35,971.96

Features
Applications
Single-impeller centrifugal pump specifically designed for jet-stream currents, with flows up to 75 m3/h.
Self-priming up to 4 metres. With 2 drainage spouts on the hydraulic casing. Adjustable impulsion.

Materials
Pump casing, pump base, diffuser, impeller and seal mounting in technopolymer.
AISI 420 stainless-steel drive shaft.
Mechanical seal in graphite and alumine, L-2521 alumine motor casing and windings mechanism impregnated with epoxy resin. NBR gaskets.

Motor
Asynchronous, 2 poles.
IP 44 protection.
Class F insulation.
1~: Thermal protection included. Continuous operation.
Limitations
Maximum water temperature: 40° C.


Equipment
Connection box V0 (self-extinguishing flame).
P2 capacitor (10.000h).
Not supplied:  cable, plug.
Installation
Required by qualified electrician. Needs over/under phase protector, contactor, RCCB/GFCI

Supplied with suction and impulsion accessories.
