Accueil > POMPES>Emaux EPH400 4HP pump 380V

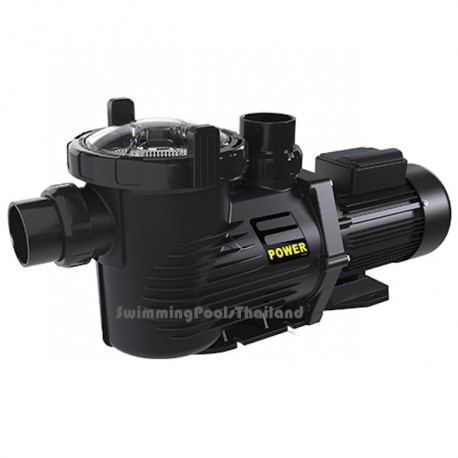

Emaux EPH400 4HP pump 380V

Emaux™ EPH400, 4 HP, E-Power High Performance Pump 380V 3-phase heavy duty pump  for commercial instalations.

Flow rate 37.95 m3/hr.

 2.5"  ports, 2" adapters.

2 ans de garantie

For more information  see below and download the brochure.

Plus de détails

201503

฿ 19,336.45

Emaux™ EPH series 380V 3-phase heavy duty with 2" & 2.5"ports.

one.png Moteur asynchrone à deux pôles

two.png Isolation de classe: 130 (B)

three.png IPX5 standard étanche

four.png Protection thermique intégrée

five.png Protection de surcharge

six.png Disponible en 50Hz ou 60Hz avec 220V / 380V

seven.png Raccord spécial compatible avec les normes de mesure impériales et métriques

eight.png S.S. 316 Shaft

nine.png S.S. 316 Joint mécanique

10.png Auto-amorçant jusqu'à 2,5 m au dessus du niveau de l'eau

11.png Pression d'essai 50PSI (3,5 bars)

12.png Panier Volume 5 litres

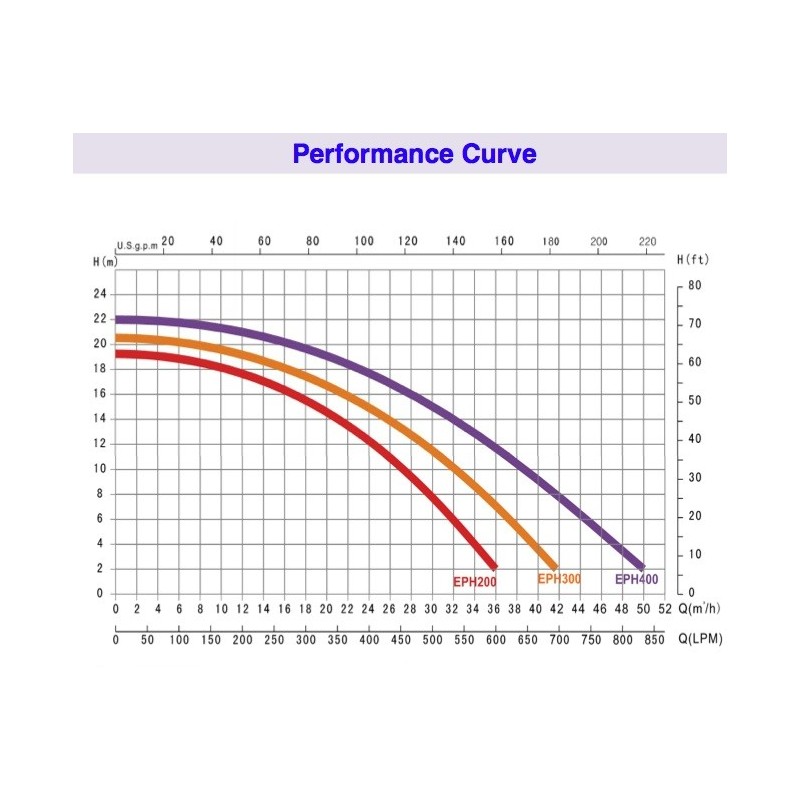

Emaux EPH flow rates

Features

  • Asynchronous,  two pole motor
  • 2" ports
  • Vibration-free heavy duty PVC  plinth - easy pump removal.
  • Supplied complete with unions
  • Class insulation:130 IPX5 Waterproof Standard
  • Overload Protector
  • Built in thermal protection
  • Heavy duty
  • High performance in both high and medium head installations
  • For use in commercial pools and larger domestic pools
  • NSK bearing
  • Non-corrosive materials allow operation under all weather conditions.
  • Ring lock  seal to  eliminate suction  leaks
  • External  heat  sink for  maximum  cooling
  •  220V/50Hz. Available  in  380V/50Hz (SB30, 3HP only),
  • Specially  designed   unions  accommodate  both  metric  &  imperial standards
  • Recommendation: Installed by MTH Pools as the default series with their larger  commercial pools.

Guarantee

1 year

Available parts

All - please let us know what you need
